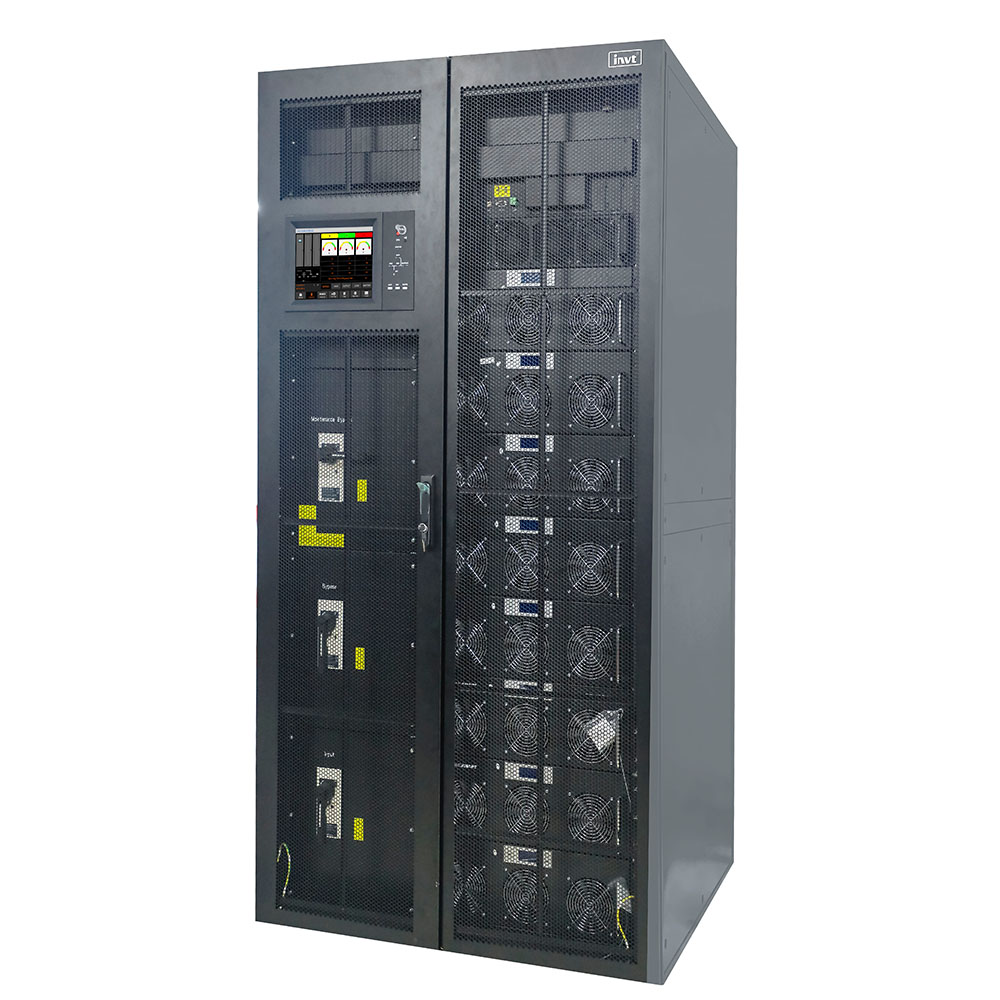

● Compact design
500kVA in one cabinet, footprint less than 1.45m²，saving valuable room space
● High power density
50kVA power module in 4U height, easy for capacity expansion
● High efficiency
Advanced 3-level technology guarantees high efficiency operating in double conversion mode up to 96%
● Intelligent charging management
The system intelligently control the whole process of the charging and discharging, effectively improve the life time of the battery
● High scalability
The system can be configured from 40kVA to 500kVA in one single cabinet,3 units in parallel for a capacity up to 1500kVA
● Friendly HMI
10.4” touch color LCD with graphic display, independent LCD for each power module
● Smart sleep function
System can intelligently shutdown some power modules to increase total load rate, achieving higher efficiency
● Multi communication interface
Provide RS232, RS485, USB, SNMP, AS400 and programmable dry contacts
